DENEXT OBTURATION PEN

Denext obturation pen

Product code : DN 184

Brand : Denext

Cod Available : Yes

Cod Charges : ₹0.00

Write a Review Write a Review

Color
White

Size
Standard

Strength
Standard

Qty.
- +

Price
₹ 10,500.00 ₹ 8,500.00 (19.05%)

  • Delivery available at all pin codes.
  • Delivery within  5-6 working days.
  • Enter Pincode to check COD.
  • Free Shipping on orders above Rs 2500.



For bulk pricing leave us a message on dentalaaka@gmail.com.

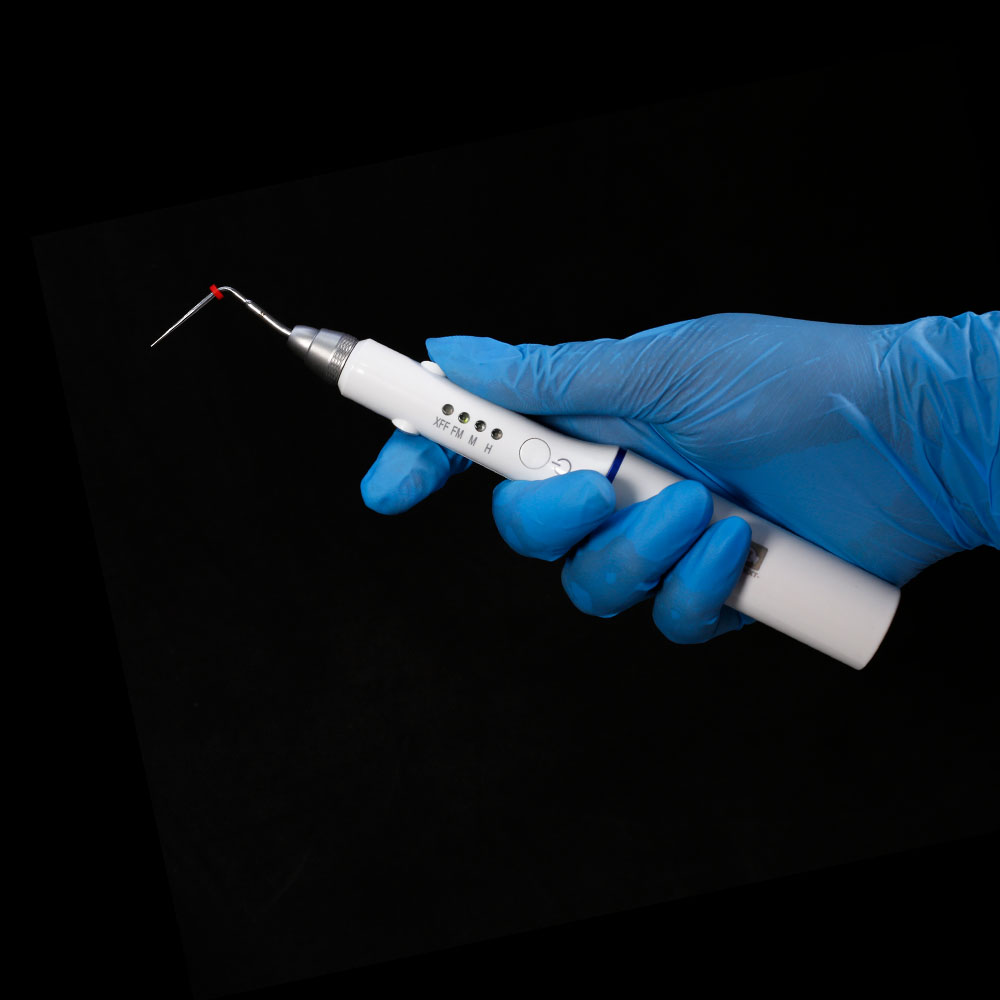

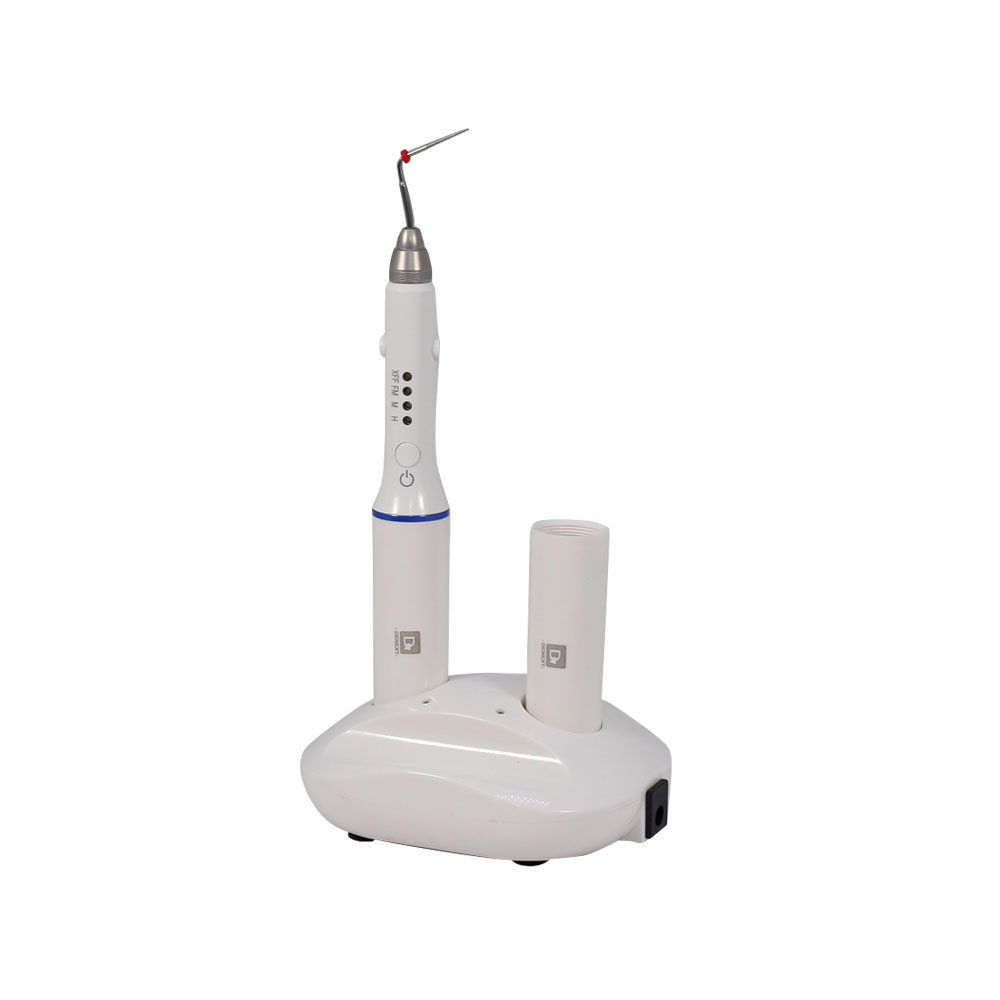

  •  DENEXT Obturation Pen System is a
  • Cordless system used for Warm Vertical Compaction while doing RCT. Using Obturation Pen, one applies pressure in a vertical direction to the heat softened gutta percha and thereby causes it to flow and to fill the entire lumen of the canal.

HOW TO USE-

STEP 1:

  • Preparation -gutta percha point.

STEP 2:

  • Prepatration -hand plugger:
  • Prepare 2-3 plugger to compact gutta percha ,mark root canal length by rubber stopper.

STEP 3:

  • Preparation -pen tip:
  • Select proper pen tip for root canal.

STEP 4:

  • Dry root canal:
  • Dry the root canal using paper point.

STEP 5:

  • Select the gutta percha point.

STEP 6:

  • Mark the length of pen tip

STEP 7:

  • Insert gutta percha point:
  • Coat 3mm from the tip with sealer, insert in to root canal with pumping action.

STEP 8:

  • Removal of excess gutta percha.
  • Cut the excess gutta percha by pen tip.

STEP 9:

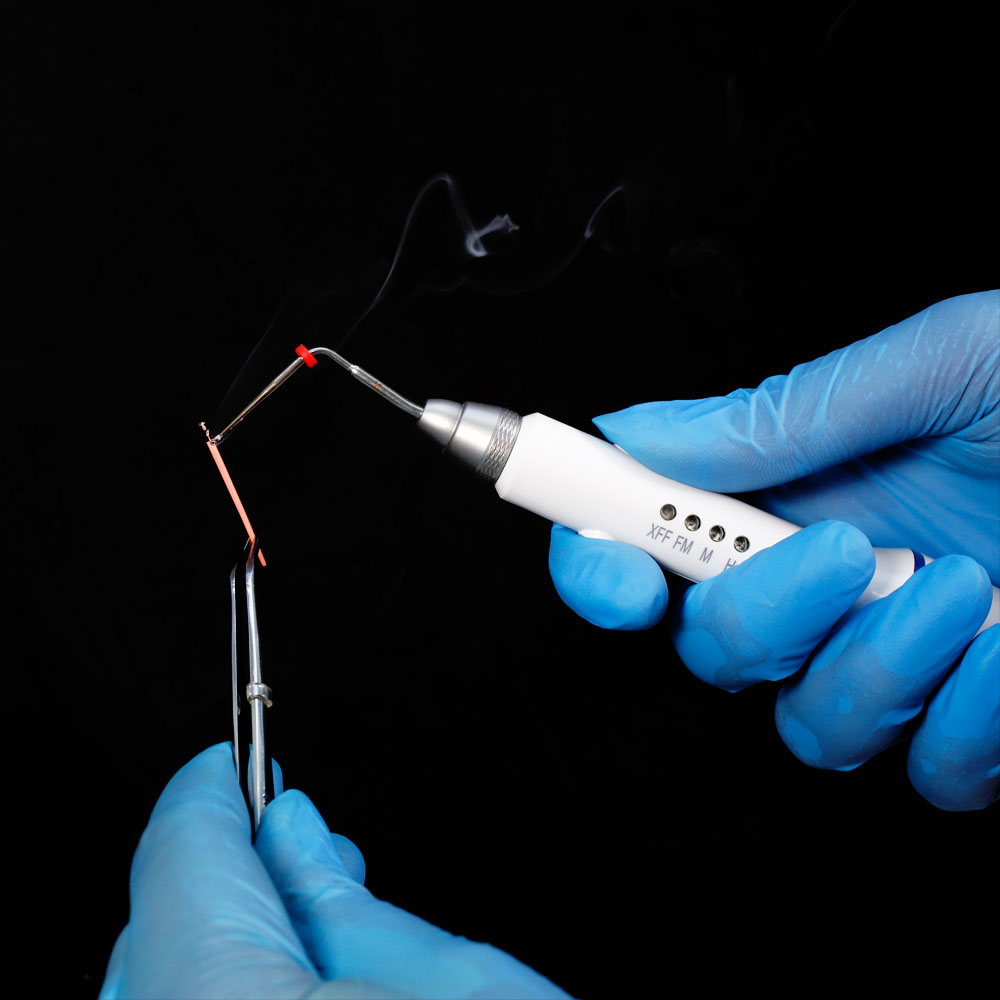

  • Heating & insertion:
  • Heat and insert pen tip with gutta percha to 4-6mm short of the working length.
  • (NOTE: High temperature mode is recommended for this step because of too much gutta).

STEP 10:

  • Compaction:
  • Stop the heating and maintain the pressure about 10 secs.

STEP 11:

  • Removal of pen tip:
  • Removal after heating the pen tip for 1~2 seconds to avoid gutta percha come out with pen tip.

STEP 12:

  • Compact
  • Compact the warmed gutta percha with the plugger.
  • (NOTE: Its proper to use low temperature mode because of less gutta).
  • Other Accesories (like tips, etc) are not included in Warranty.

TECHNICAL SPECIFICATIONS:

  • Power Adapter:
  • Input : 100~240V/AC 50/60Hz.
  • Output:  DC 5V/1.5A.
  • Voltage: DC 3.7V.
  • Li-ion Battery Capacity: 2800mAh.
  • Temperature of Pentip:
  • Low temperature status: 160~200°C .
  • High temperature status: 200~240°C.
  • Operating: +10°~ +40°.
  • Storage: -10°~ +55°C.
  • Packing Size: 20 x 15.5 x 16.5cm.
  •  SIZE OF TIPS:
  • Size Color Taper
  • F White #45/02.
  • FM Black #50/04.
  • M Red #55/06.
  • Simple design .
  • Needle type & temperature mode can be adjusted making the gutta percha point more contact.
  • Double batteries to replace for convinient use.
  • Convenience in application.
  • Convenience in retreatment.
  • High sealing ability.
  • ML Yellow #55/08.

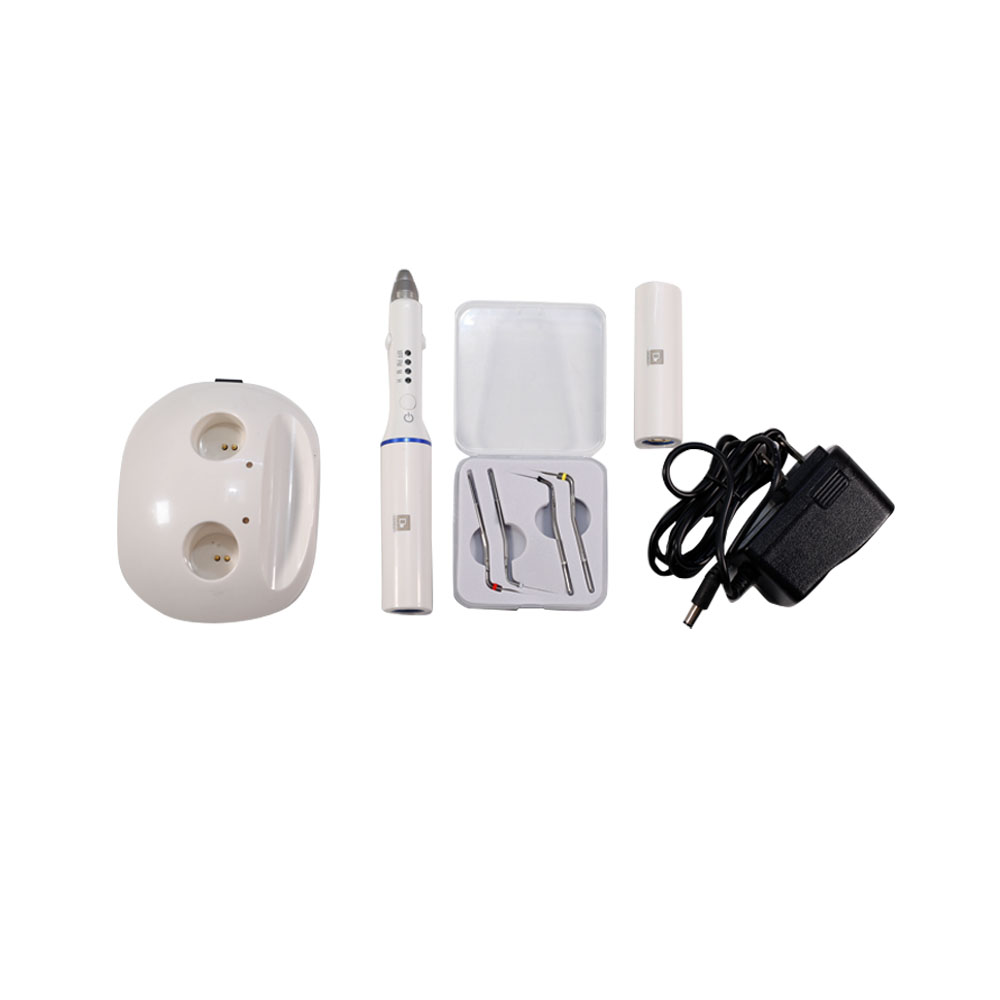

  • 1 x Obturation Pen.
  • 1 x Charging Base.
  • 1 x Adaptor.
  • 2 x Batteries.
  • 4 x Tips (F, FM, M, ML).

1 Year Warranty against the manufacturing defect on the equipment.

6 months Warranty on Battery & Adapter.
